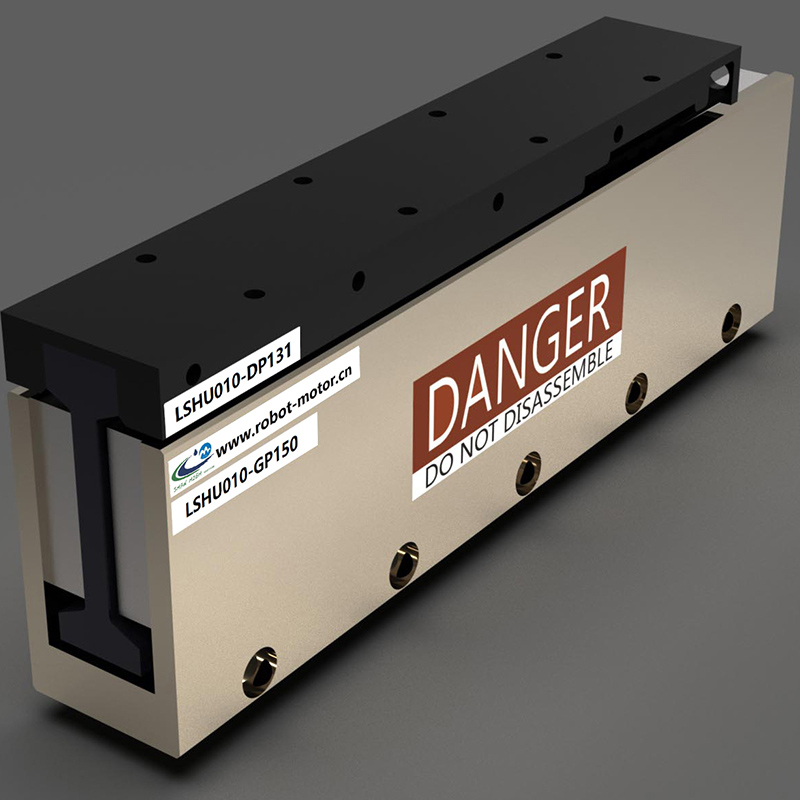

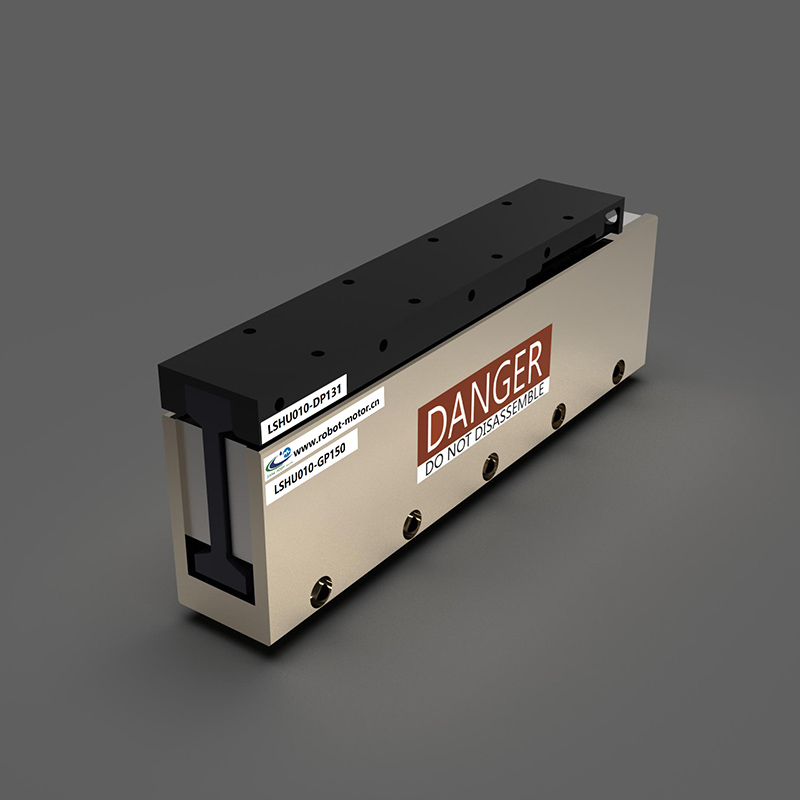

| Parameter | Unit | LSHUS010-DP36 | LSHUS010-DP76 | LSHUS010-DP100 |
| Performance Specifications | ||||
| Continuous Force | N | 9.5 | 21 | 31 |
| Peak Force | N | 66.5 | 147 | 217 |
| Electrical Specifications | ||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 3.9 | 9.21 | 12.9 |
| Continuous Current | Arms | 1.98 | 1.86 | 1.96 |
| Peak Current,Stall | Arms | 13.9 | 13 | 13.7 |
| Force Constant | N/Arms | 4.27 | 10.77 | 14.95 |
| Motor Constant | N/✔N | 2.5 | 3.55 | 4.2 |
| Resistance,25°C (line-line) | Ω | 2.2 | 5.5 | 7.7 |
| Inductance,(line-line) | mH | 0.22 | 0.55 | 0.84 |
| Thermal Resistance | °C/W | 6.5 | 2.8 | 1.8 |
| Maximum Bus Voltage | VDC | 340 | ||
| Mechanical Specifications | ||||
| Coil Weight | kg | 0.035 | 0.088 | 0.11 |
| Coil Length | mm | 3.3 | 69 | 93 |
| Magnet Track Weight | kg/m | 1.8 | ||
| Magnetic Pole Pitch (NN) | mm | 24 | ||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown (@ 100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.

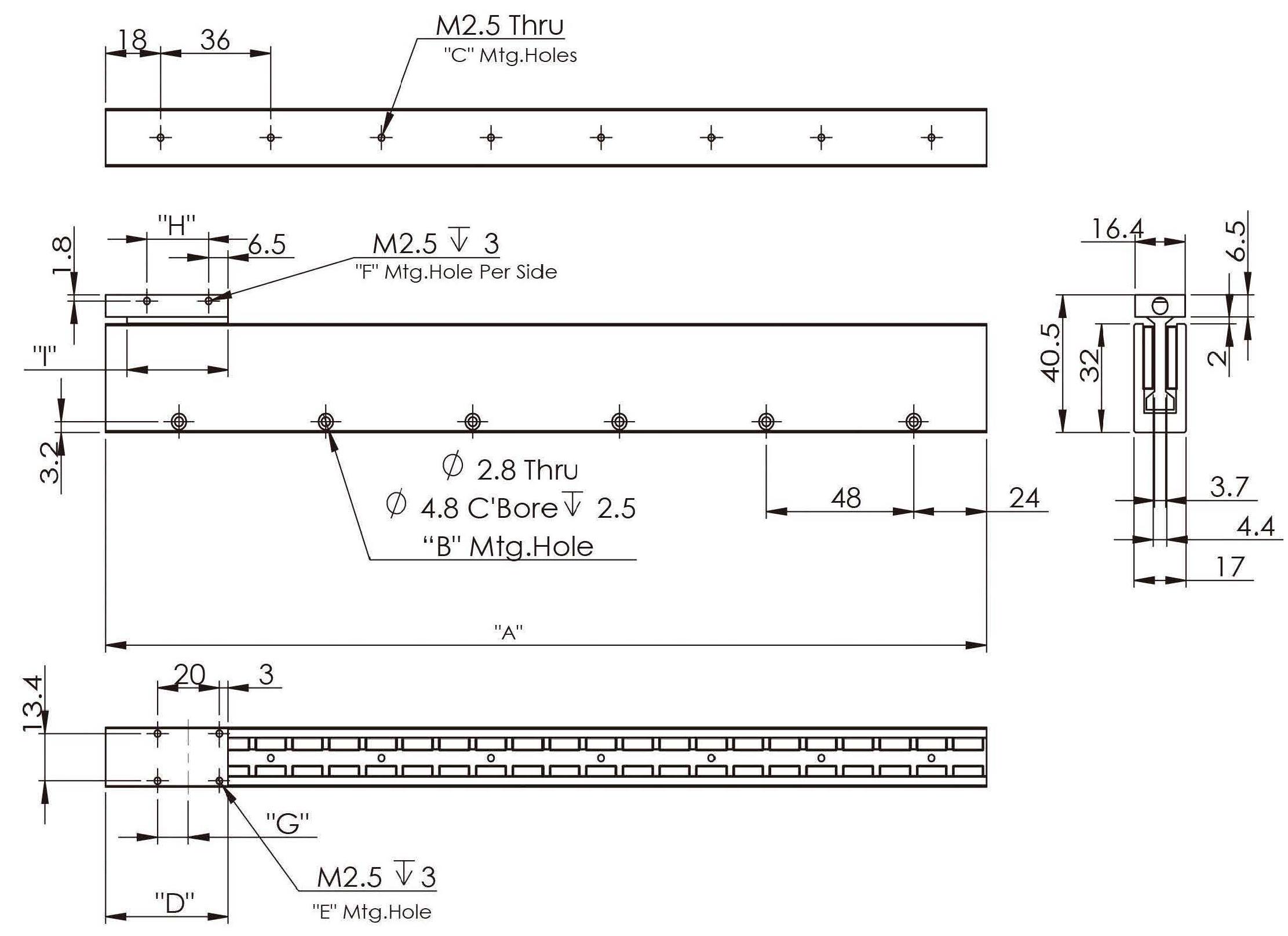

Dimensions(mm)

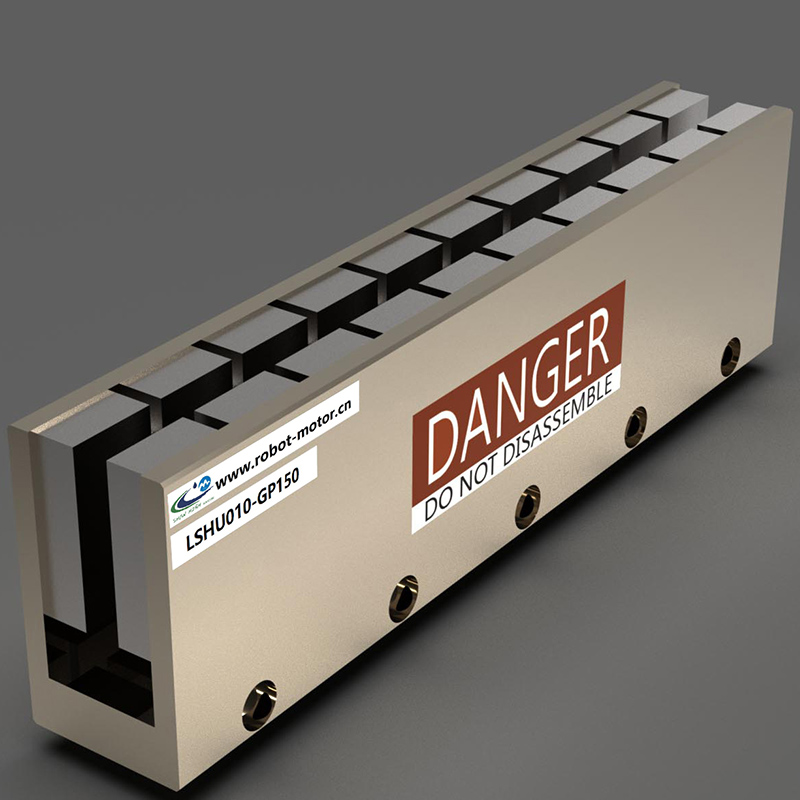

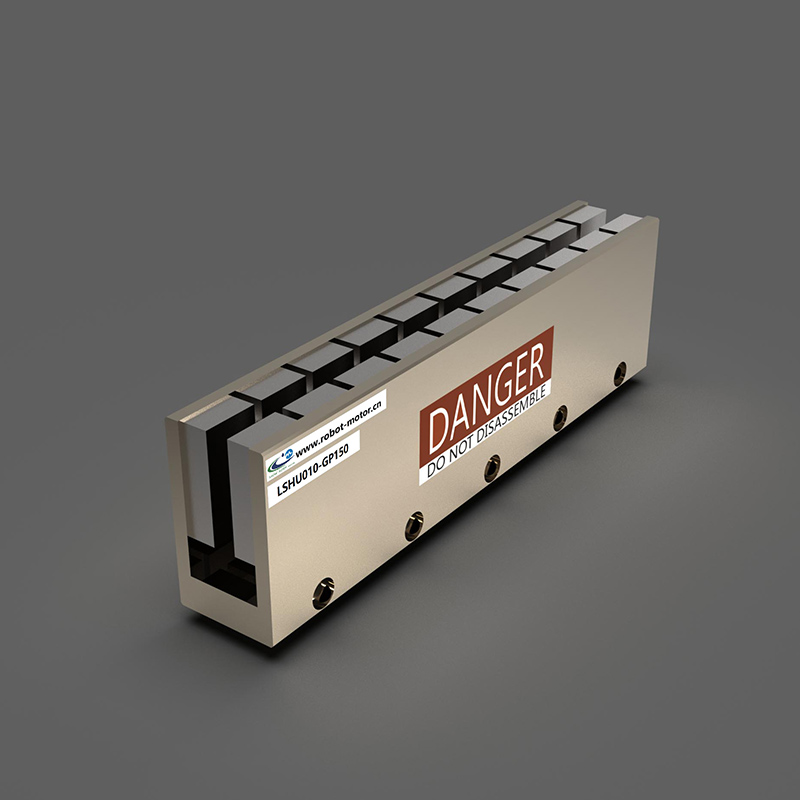

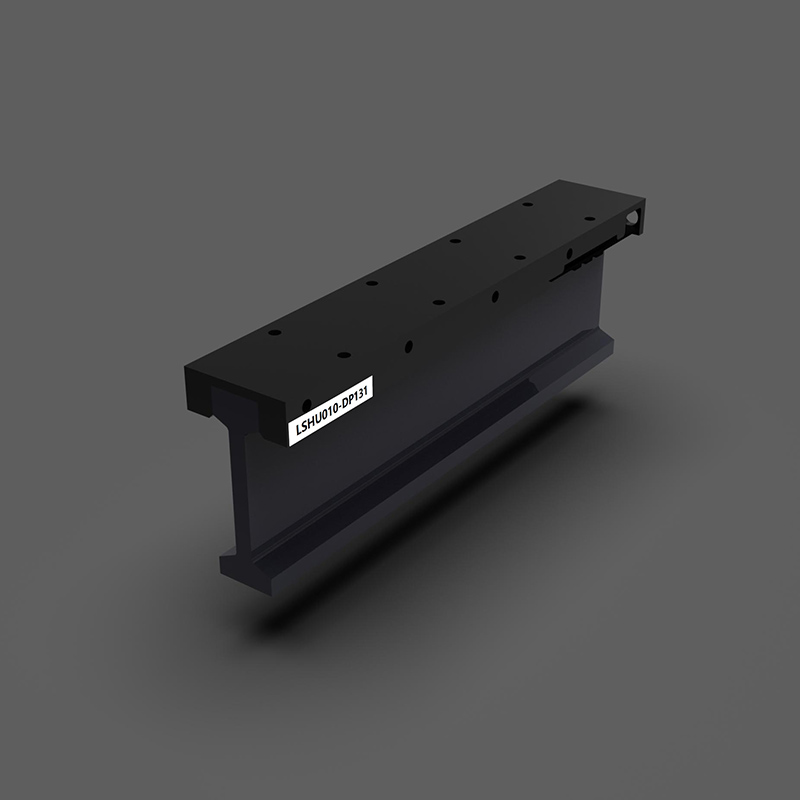

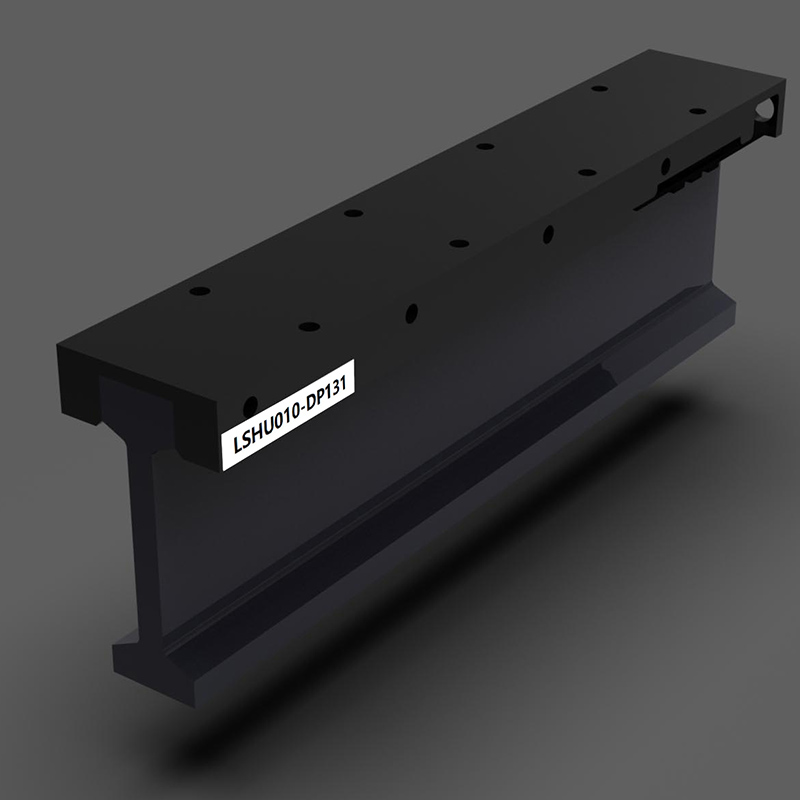

| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHUS010-GP96 | 96 | 2 | 3 |
| LSHUS010-GP288 | 288 | 6 | 8 |
| Coil Plate (Forcer) | ||||||
| Model No. | D | E | F | G | H | I |
| LSHUS010-DP36 | 40 | 4 | 4 | 10 | 20 | 33 |
| LSHUS010-DP76 | 76 | 8 | 8 | 10 | 20 | 69 |
| LSHUS010-DP100 | 100 | 10 | 10 | 10 | 20 | 93 |
| Parameter | Unit | LSHUS010-DP36 | LSHUS010-DP76 | LSHUS010-DP100 |
| Performance Specifications | ||||
| Continuous Force | N | 9.5 | 21 | 31 |
| Peak Force | N | 66.5 | 147 | 217 |
| Electrical Specifications | ||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 3.9 | 9.21 | 12.9 |
| Continuous Current | Arms | 1.98 | 1.86 | 1.96 |
| Peak Current,Stall | Arms | 13.9 | 13 | 13.7 |
| Force Constant | N/Arms | 4.27 | 10.77 | 14.95 |
| Motor Constant | N/✔N | 2.5 | 3.55 | 4.2 |
| Resistance,25°C (line-line) | Ω | 2.2 | 5.5 | 7.7 |
| Inductance,(line-line) | mH | 0.22 | 0.55 | 0.84 |
| Thermal Resistance | °C/W | 6.5 | 2.8 | 1.8 |
| Maximum Bus Voltage | VDC | 340 | ||
| Mechanical Specifications | ||||
| Coil Weight | kg | 0.035 | 0.088 | 0.11 |
| Coil Length | mm | 3.3 | 69 | 93 |
| Magnet Track Weight | kg/m | 1.8 | ||
| Magnetic Pole Pitch (NN) | mm | 24 | ||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown (@ 100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.
Dimensions(mm)
| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHUS010-GP96 | 96 | 2 | 3 |
| LSHUS010-GP288 | 288 | 6 | 8 |
| Coil Plate (Forcer) | ||||||
| Model No. | D | E | F | G | H | I |
| LSHUS010-DP36 | 40 | 4 | 4 | 10 | 20 | 33 |
| LSHUS010-DP76 | 76 | 8 | 8 | 10 | 20 | 69 |
| LSHUS010-DP100 | 100 | 10 | 10 | 10 | 20 | 93 |
