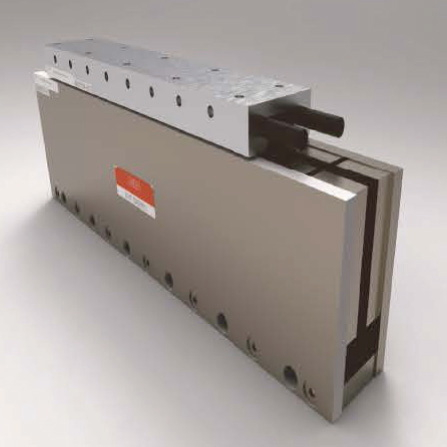

| Parameter | Unit | LSHU020-DP93 | LSHU020-DP143 | LSHU020-DP193 | LSHU020-DP268 |
| Performance Specifications | |||||
| Continuous Force | N | 55 | 85 | 110 | 135 |
| Peak Force | N | 385 | 595 | 770 | 945 |
| Electrical Specifications | |||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 12.76 | 21.28 | 29.79 | 42.55 |
| Continuous Current | Arms | 3.5 | 3.25 | 3 | 2.58 |
| Peak Current,Stall | Arms | 24.52 | 22.74 | 21.02 | 18.06 |
| Force Constant | N/Arms | 15.7 | 26.17 | 36.64 | 52.34 |
| Motor Constant | N/✔N | 5.66 | 8.2 | 10.29 | 11.52 |
| Resistance,25°C (line-line) | Ω | 2.89 | 4.82 | 6.75 | 9.65 |
| Inductance,(line-line) | mH | 0.83 | 1.33 | 1.9 | 3.4 |
| Thermal Resistance | °C/W | 1.62 | 1.12 | 0.93 | 0.87 |
| Maximum Bus Voltage | VDC | 340 | |||
| Mechanical Specifications | |||||
| Coil Weight | kg | 0.16 | 0.18 | 0.27 | 0.38 |
| Coil Length | mm | 93 | 131 | 191 | 252 |
| Magnet Track Weight | kg/m | 6.59 | |||
| Magnetic Pole Pitch (NN) | mm | 50 | |||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown @100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.

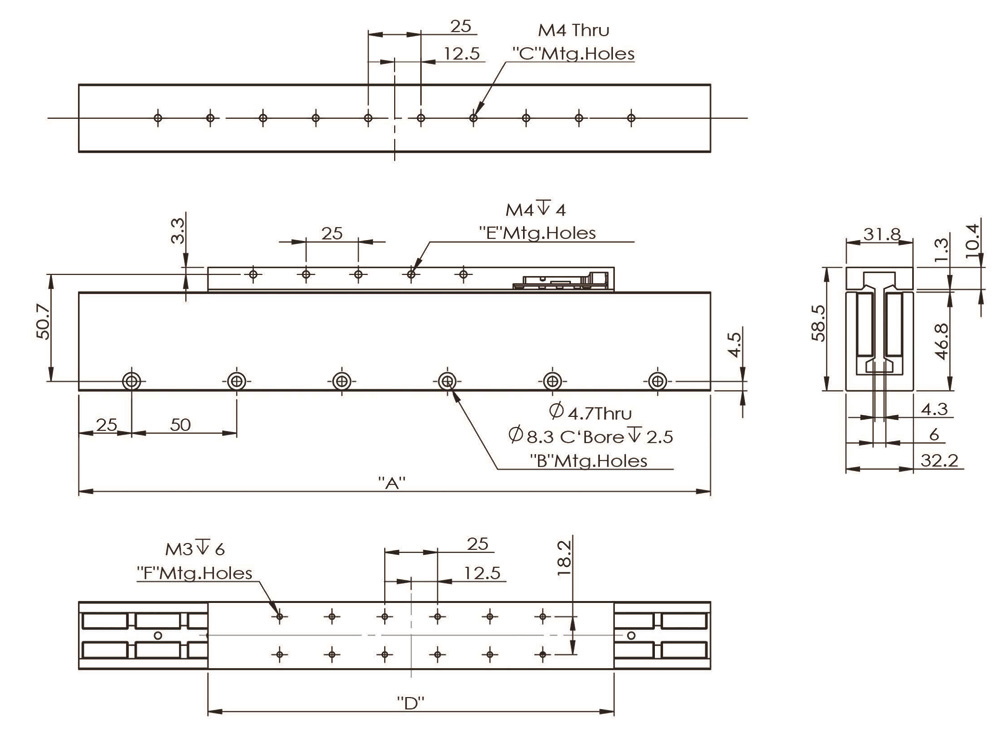

Dimensions(mm)
| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHU020-GP150 | 150 | 3 | 4 |
| LSHU020-GP300 | 300 | 6 | 10 |
| LSHU020-GP600 | 600 | 12 | 22 |
| Coil Plate (Forcer) | |||
| Model No. | D | E | F |
| LSHU020-DP93 | 93 | 5 | 4 |
| LSHU020-DP143 | 143 | 8 | 8 |
| LSHU020-DP193 | 193 | 12 | 12 |
| LSHU020-DP268 | 268 | 17 | 20 |
