DD-ZG57

Share to:

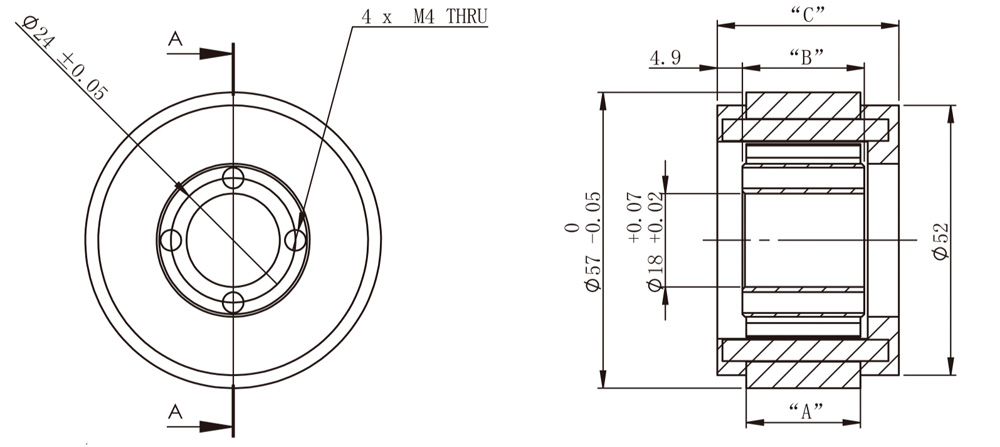

Dimensions(mm)

Model No.		A	B	C
DD-ZG57		22	23.5	35

dd motor-2

Motor Data
	Motor model		DD-ZG57
1	Nominal speed	Wc	4000	rpm
2	Nominal torque	Tc	0.2	Nm
3	Maximum torque	TP	0.82	Nm
4	Nominal current	Ic	1.27	A
5	Maximum current	IP	5.2	A
6	Nominal power	PR	83.8	watts
7	Terminal resistance	Rt	6.21	Ω
8	Terminal inductance	L	2.5	mH
9	Torque constant	Kt	0.157	Nm/A
10	Thermal Resistance	℃/W	2	C/W
11	Number of poles pairs	p	2
12	Maximum Bus Voltage	V	340	VDC
13	Motor insulation class		class B
14	Protection class		IP64
15	Ambient temperature		-20~+40℃
16	Frameless Motor Weight		0.32	kg
17	Frameless Rotor Inertia		1.11×10⁵	kg ·m²
18	Length of Winding,Frameless Motor		35	mm
19	Outside Diameter,Frameless Motor		57	mm
20	Rotor Bore Diameter		18	mm

Teminal definitions
