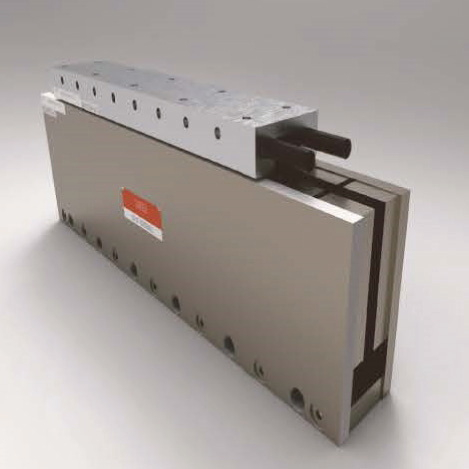

| Parameter | Unit | LSHU030-DP143 | LSHU030-DP204 | LSHU030-DP265 | LSHU030-DP387 | ||||
| A | B | A | B | A | B | A | B | ||
| Performance Specifications | |||||||||
| Continuous Force | N | 110.5 | 153.3 | 197.2 | 257.3 | ||||
| Peak Force | N | 692.7 | 1006.4 | 1206.6 | 1590.4 | ||||
| Electrical Specifications | |||||||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 40.97 | 20.49 | 66.5 | 33.25 | 88.93 | 44.46 | 134.6 | 67.23 |
| Continuous Current | Arms | 2.19 | 4.38 | 1.87 | 3.75 | 1.8 | 3.61 | 1.56 | 3.11 |
| Peak Current,Stall | Arms | 13.75 | 27.49 | 12.3 | 24.61 | 11.03 | 22.06 | 9.62 | 19.23 |
| Force Constant | N/Arms | 50.39 | 25.2 | 81.8 | 40.9 | 109.39 | 54.69 | 165.38 | 82.69 |
| Motor Constant | N/✔N | 10.53 | 14.11 | 16.39 | 20.17 | ||||
| Resistance,25°C (line-line) | Ω | 10.9 | 2.7 | 16 | 4 | 21.2 | 5.3 | 32 | 8 |
| Inductance,(line-line) | mH | 8.7 | 2.18 | 12.8 | 3.2 | 16.8 | 4.2 | 24.8 | 6.2 |
| Thermal Resistance | °C/W | 0.91 | 0.85 | 0.69 | 0.61 | ||||
| Maximum Bus Voltage | VDC | 340 | |||||||
| Mechanical Specifications | |||||||||
| Coil Weight | kg | 0.6 | 0.9 | 1.1 | 1.7 | ||||
| Coil Length | mm | 143.8 | 204.7 | 265.7 | 387.6 | ||||
| Magnet Track Weight | kg/m | 10.12 | |||||||
| Magnetic Pole Pitch (NN) | mm | 60.96 | |||||||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown @ 100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.
Dimensions(mm)
| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHU030-GP240 | 243.8 | 4 | 3 |
| LSHU030-GP300 | 304.8 | 5 | 4 |
| LSHU030-GP600 | 609.6 | 10 | 9 |
| Coil Plate (Forcer) | ||||||
| Model No. | D | E | F | G | H | K |
| LSHU030-DP143 | 143.8 | 116.8 | 58.4 | NA | 8 | 6 |
| LSHU030-DP204 | 204.7 | 177.8 | 88.9 | NA | 8 | 6 |
| LSHU030-DP265 | 265.7 | 238.8 | 119.4 | NA | 12 | 6 |
| LSHU030-DP387 | 387.6 | 360.6 | 180.3 | 96.5 | 19 | 10 |
| Parameter | Unit | LSHU030-DP143 | LSHU030-DP204 | LSHU030-DP265 | LSHU030-DP387 | ||||
| A | B | A | B | A | B | A | B | ||
| Performance Specifications | |||||||||
| Continuous Force | N | 110.5 | 153.3 | 197.2 | 257.3 | ||||
| Peak Force | N | 692.7 | 1006.4 | 1206.6 | 1590.4 | ||||
| Electrical Specifications | |||||||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 40.97 | 20.49 | 66.5 | 33.25 | 88.93 | 44.46 | 134.6 | 67.23 |
| Continuous Current | Arms | 2.19 | 4.38 | 1.87 | 3.75 | 1.8 | 3.61 | 1.56 | 3.11 |
| Peak Current,Stall | Arms | 13.75 | 27.49 | 12.3 | 24.61 | 11.03 | 22.06 | 9.62 | 19.23 |
| Force Constant | N/Arms | 50.39 | 25.2 | 81.8 | 40.9 | 109.39 | 54.69 | 165.38 | 82.69 |
| Motor Constant | N/✔N | 10.53 | 14.11 | 16.39 | 20.17 | ||||
| Resistance,25°C (line-line) | Ω | 10.9 | 2.7 | 16 | 4 | 21.2 | 5.3 | 32 | 8 |
| Inductance,(line-line) | mH | 8.7 | 2.18 | 12.8 | 3.2 | 16.8 | 4.2 | 24.8 | 6.2 |
| Thermal Resistance | °C/W | 0.91 | 0.85 | 0.69 | 0.61 | ||||
| Maximum Bus Voltage | VDC | 340 | |||||||
| Mechanical Specifications | |||||||||
| Coil Weight | kg | 0.6 | 0.9 | 1.1 | 1.7 | ||||
| Coil Length | mm | 143.8 | 204.7 | 265.7 | 387.6 | ||||
| Magnet Track Weight | kg/m | 10.12 | |||||||
| Magnetic Pole Pitch (NN) | mm | 60.96 | |||||||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown @ 100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.

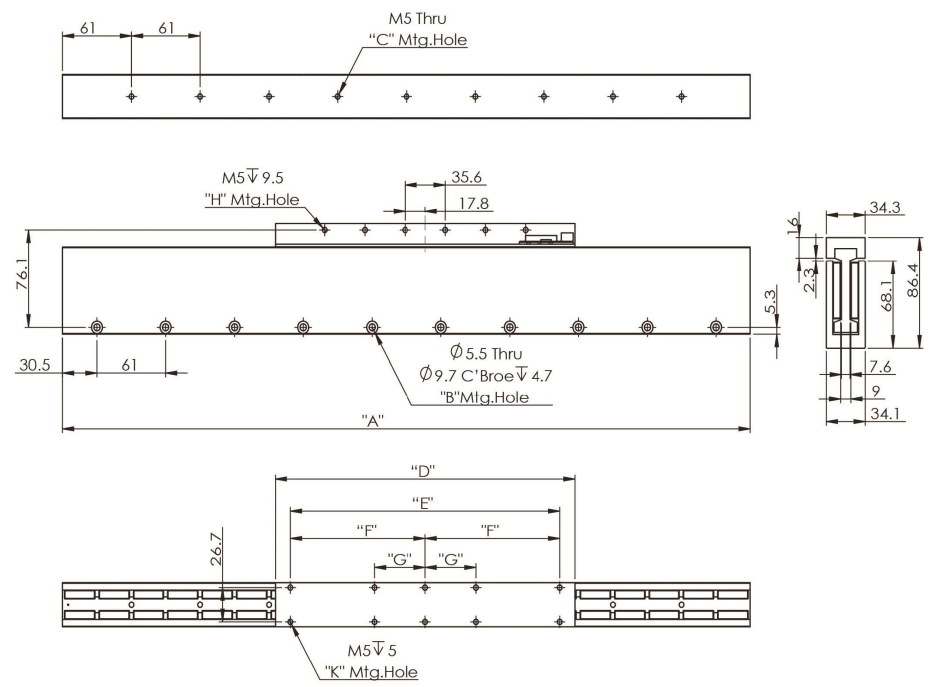

Dimensions(mm)
| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHU030-GP240 | 243.8 | 4 | 3 |
| LSHU030-GP300 | 304.8 | 5 | 4 |
| LSHU030-GP600 | 609.6 | 10 | 9 |
| Coil Plate (Forcer) | ||||||
| Model No. | D | E | F | G | H | K |
| LSHU030-DP143 | 143.8 | 116.8 | 58.4 | NA | 8 | 6 |
| LSHU030-DP204 | 204.7 | 177.8 | 88.9 | NA | 8 | 6 |
| LSHU030-DP265 | 265.7 | 238.8 | 119.4 | NA | 12 | 6 |
| LSHU030-DP387 | 387.6 | 360.6 | 180.3 | 96.5 | 19 | 10 |
