SH101-R83-CB

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
高齿比
高扭矩
高速
低噪声
长寿

  • SH101-R83-CB

  • Shan High

Availability:
Quantity:
Inquire Add to Basket

Model NO Gear Ratio Out Put Speed Rated Speed Rated Torque Peak Torque Gear Backlash Temperature Noise Life
SH101-R83-CB 101:1 30(RPM) 3000(RPM) 53（N.m） 120（N.m） <30(arcsec) 0-40℃ ≤60dB 5000H
Model NO Encoder  Resolution Rated Power Rated Voltage Rated Current Torque Current Counter   electromotive force constant Torque Constant Communication Bus Weight
SH101-R83-CB 19bit 288W 48V 6A 15.9A 8.3V/Krpm 0.134N.m/A Can 1.26KG

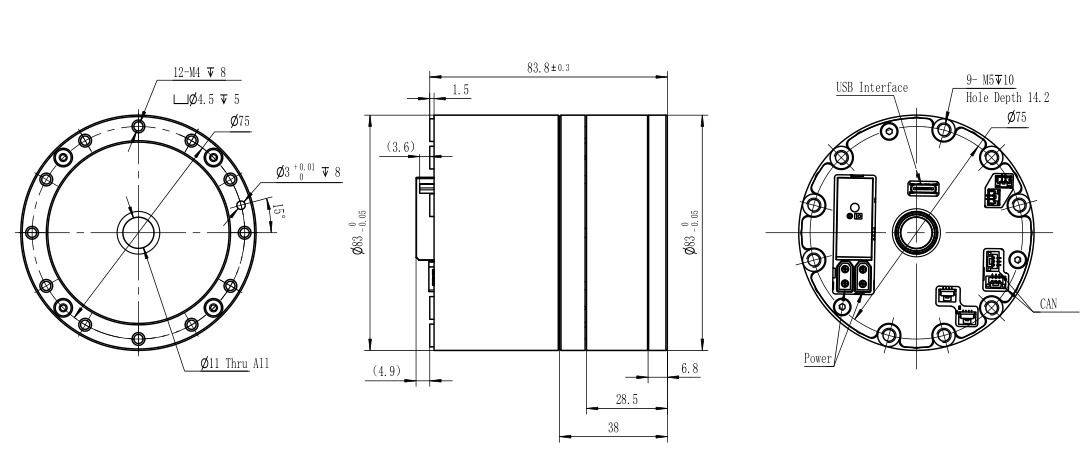

R83图片1
