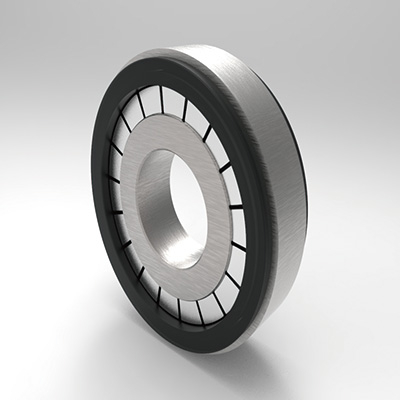

DD-ZG76

Share to:

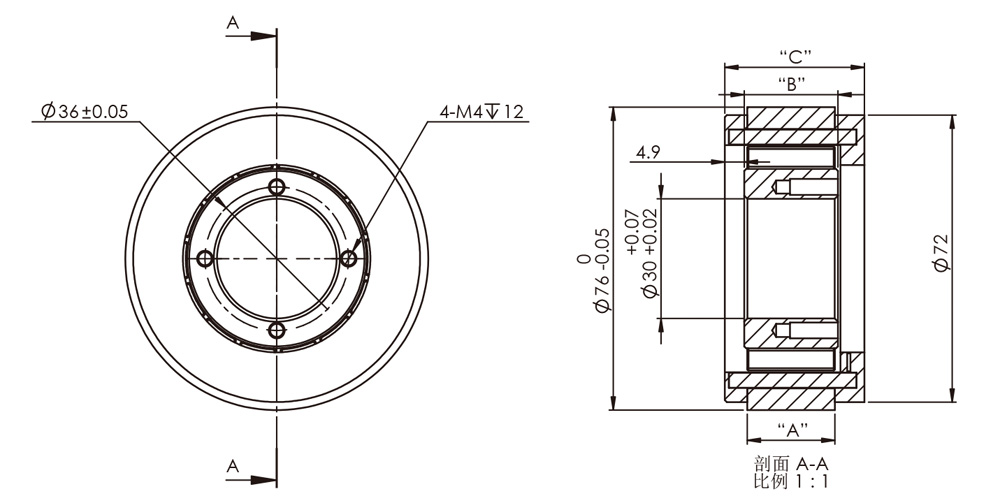

Dimensions(mm)

Model No.		A	B	C
DD-ZG76		22	23.5	35

dd motor-5

Motor Data
	Motor model		DD-ZG76
1	Nominal speed	Wc	3000	rpm
2	Nominal torque	Tc	0.48	Nm
3	Maximum torque	TP	1.92	Nm
4	Nominal current	Ic	1.45	A
5	Maximum current	IP	5.8	A
6	Nominal power	PR	143.3	watts
7	Terminal resistance	Rt	12.3	Ω
8	Terminal inductance	L	2	mH
9	Torque constant	Kt	0.332	Nm/A
10	Thermal Resistance	℃/W	1.83	C/W
11	Number of poles pairs	p	7
12	Maximum Bus Voltage	V	340	VDC
13	Motor insulation class		class B
14	Protection class		IP64
15	Ambient temperature		-20~+40℃
16	Frameless Motor Weight		0.57	kg
17	Frameless Rotor Inertia		1.28×10⁻⁴	kg·m²
18	Length of Winding,Frameless Motor		35	mm
19	Outside Diameter,Frameless Motor		76	mm
20	Rotor Bore Diameter		30	mm

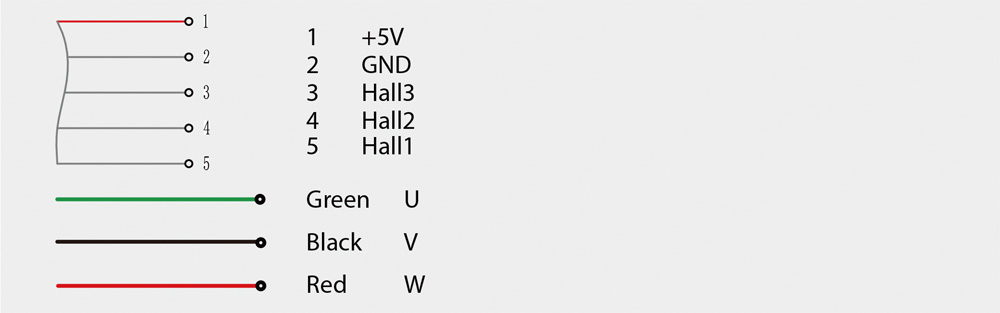

Teminal definitions
