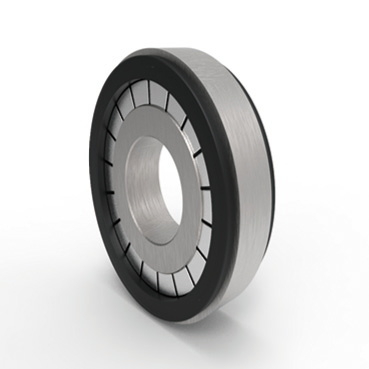

DD-ZG130

Share to:

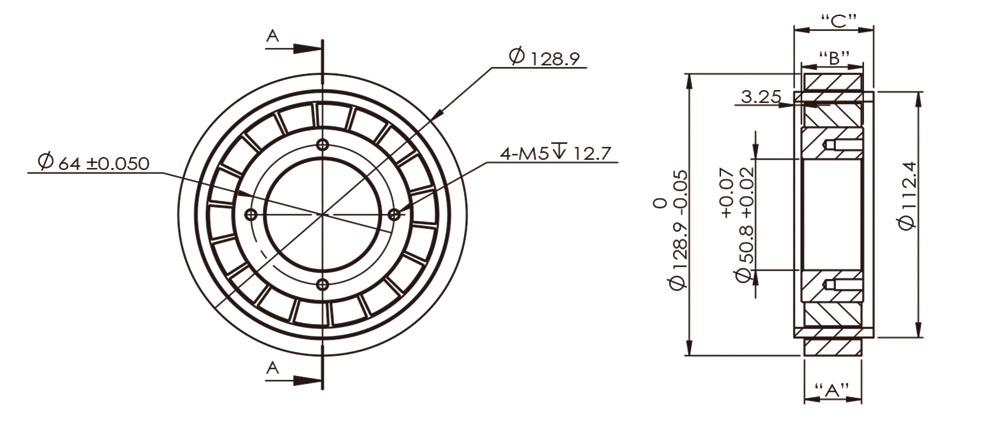

Dimensions(mm)

Model No.		A	B	C
DD-ZG130		25.5	27.6	38.7

dd motor-7-1

Motor Data
	Motor model		DD-ZG130
1	Nominal speed	Wc	2000	rpm
2	Nominal torque	Tc	2.36	Nm
3	Maximum torque	TP	9.42	Nm
4	Nominal current	Ic	2.82	A
5	Maximum current	IP	11.28	A
6	Nominal power	PR	494	watts
7	Terminal resistance	Rt	5.9	Ω
8	Terminal inductance	L	1.4	mH
9	Torque constant	Kt	0.838	Nm/A
10	Thermal Resistance	℃/W	0.95	C/W
11	Number of poles pairs	p	8
12	Maximum Bus Voltage	V	340	VDC
13	Motor insulation class		class B
14	Protection class		IP64
15	Ambient temperature		-20~+40℃
16	Frameless Motor Weight		1.87	kg
17	Frameless Rotor Inertia		1.6x10⁻³	kg·m²
18	Length of Winding,Frameless Motor		35	mm
19	Outside Diameter,Frameless Motor		130	mm
20	Rotor Bore Diameter		50.8	mm

Teminal definitions
