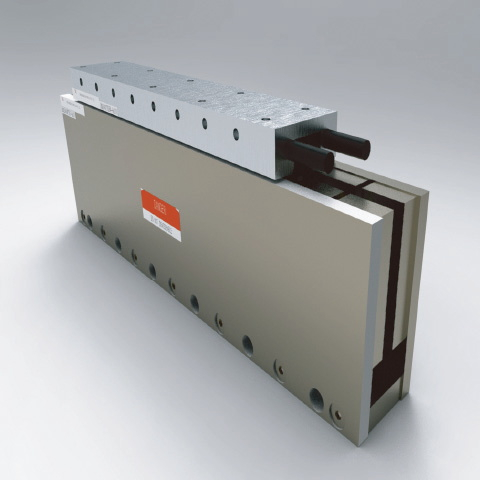

| Quantity: | |
|---|---|
| Parameter | Unit | LSHU040-DP144 | LSHU040-DP204 | LSHU040-DP264 | LSHU040-DP384 | LSHU040-DP504 | |||||
| A | B | A | B | A | B | A | B | A | B | ||
| Performance Specifications | |||||||||||
| Continuous Force | N | 200 | 250 | 335 | 440 | 600 | |||||
| Peak Force | N | 1400 | 1750 | 2345 | 3080 | 4200 | |||||
| Electrical Specifications | |||||||||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 75.45 | 37.72 | 113.18 | 56.6 | 150.9 | 75.45 | 128.05 | 64.02 | 170.72 | 85.37 |
| Continuous Current | Arms | 2.16 | 4.31 | 1.8 | 3.59 | 1.8 | 3.61 | 2.79 | 5.59 | 2.86 | 5.71 |
| Peak Current,Stall | Arms | 15.09 | 30.17 | 12.57 | 25.14 | 12.63 | 25.27 | 19.56 | 39.11 | 20 | 40 |
| Force Constant | N/Arms | 92.8 | 46.4 | 139.21 | 69.62 | 185.61 | 92.8 | 157.5 | 78.75 | 209.99 | 105 |
| Motor Constant | N/✔N | 21.47 | 24.01 | 27.76 | 28.34 | 32.57 | |||||
| Resistance,25°C (line-line) | Ω | 14.6 | 3.54 | 21.24 | 5.31 | 28.32 | 7.08 | 12.72 | 3.2 | 16.96 | 4.24 |
| Inductance,(line-line) | mH | 9.6 | 2.4 | 15.2 | 3.8 | 18.4 | 4.6 | 7.2 | 1.8 | 10.8 | 2.7 |
| Thermal Resistance | °C/W | 0.89 | 0.78 | 0.58 | 0.42 | 0.3 | |||||
| Maximum Bus Voltage | VDC | 340 | |||||||||
| Mechanical Specifications | |||||||||||
| Coil Weight | kg | 1.1 | 1.6 | 2.1 | 3.1 | 4.2 | |||||
| Coil Length | mm | 144 | 204 | 384 | 384 | 504 | |||||
| Magnet Track Weight | kg/m | 21.8 | |||||||||
| Magnetic Pole Pitch (NN) | mm | 60 | |||||||||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown @ 100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.

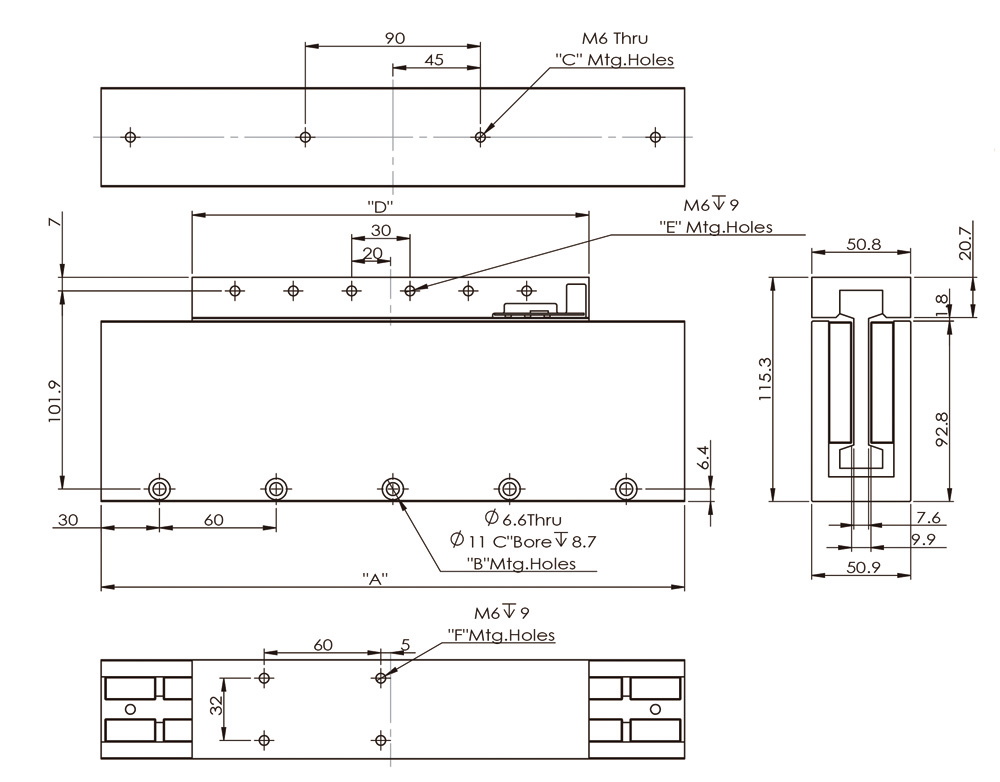

Dimensions(mm)
| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHU040-GP240 | 240 | 4 | 2 |
| LSHU040-GP300 | 300 | 5 | 4 |
| LSHU040-GP600 | 600 | 10 | 6 |
| Coil Plate (Forcer) | |||
| Model No. | D | E | F |
| LSHU040-DP144 | 144 | 8 | 4 |
| LSHU040-DP204 | 204 | 12 | 4 |
| LSHU040-DP264 | 264 | 14 | 8 |
| LSHU040-DP384 | 384 | 22 | 12 |
| LSHU040-DP504 | 504 | 30 | 16 |
| Parameter | Unit | LSHU040-DP144 | LSHU040-DP204 | LSHU040-DP264 | LSHU040-DP384 | LSHU040-DP504 | |||||
| A | B | A | B | A | B | A | B | A | B | ||
| Performance Specifications | |||||||||||
| Continuous Force | N | 200 | 250 | 335 | 440 | 600 | |||||
| Peak Force | N | 1400 | 1750 | 2345 | 3080 | 4200 | |||||
| Electrical Specifications | |||||||||||
| BEMF Constant(line-ine,peak) | V/(m/s) | 75.45 | 37.72 | 113.18 | 56.6 | 150.9 | 75.45 | 128.05 | 64.02 | 170.72 | 85.37 |
| Continuous Current | Arms | 2.16 | 4.31 | 1.8 | 3.59 | 1.8 | 3.61 | 2.79 | 5.59 | 2.86 | 5.71 |
| Peak Current,Stall | Arms | 15.09 | 30.17 | 12.57 | 25.14 | 12.63 | 25.27 | 19.56 | 39.11 | 20 | 40 |
| Force Constant | N/Arms | 92.8 | 46.4 | 139.21 | 69.62 | 185.61 | 92.8 | 157.5 | 78.75 | 209.99 | 105 |
| Motor Constant | N/✔N | 21.47 | 24.01 | 27.76 | 28.34 | 32.57 | |||||
| Resistance,25°C (line-line) | Ω | 14.6 | 3.54 | 21.24 | 5.31 | 28.32 | 7.08 | 12.72 | 3.2 | 16.96 | 4.24 |
| Inductance,(line-line) | mH | 9.6 | 2.4 | 15.2 | 3.8 | 18.4 | 4.6 | 7.2 | 1.8 | 10.8 | 2.7 |
| Thermal Resistance | °C/W | 0.89 | 0.78 | 0.58 | 0.42 | 0.3 | |||||
| Maximum Bus Voltage | VDC | 340 | |||||||||
| Mechanical Specifications | |||||||||||
| Coil Weight | kg | 1.1 | 1.6 | 2.1 | 3.1 | 4.2 | |||||
| Coil Length | mm | 144 | 204 | 384 | 384 | 504 | |||||
| Magnet Track Weight | kg/m | 21.8 | |||||||||
| Magnetic Pole Pitch (NN) | mm | 60 | |||||||||
Notes :
1.Performance is dependent upon heat sink configuration, system cooling conditions,and ambient temperature.
2.Values shown @ 100°C rise above a 25°C ambient temperature,with motor mounted to the specified aluminum heat sink.
3.Peak foree assumes correct rms current,consult us.
4.Foree constant and motor constant specified at stall.
5.All performanee and eleetrical specificationsjia±10%.
Dimensions(mm)
| Magnet Plate (Stator) | |||
| Model No. | A | B | C |
| LSHU040-GP240 | 240 | 4 | 2 |
| LSHU040-GP300 | 300 | 5 | 4 |
| LSHU040-GP600 | 600 | 10 | 6 |
| Coil Plate (Forcer) | |||
| Model No. | D | E | F |
| LSHU040-DP144 | 144 | 8 | 4 |
| LSHU040-DP204 | 204 | 12 | 4 |
| LSHU040-DP264 | 264 | 14 | 8 |
| LSHU040-DP384 | 384 | 22 | 12 |
| LSHU040-DP504 | 504 | 30 | 16 |
