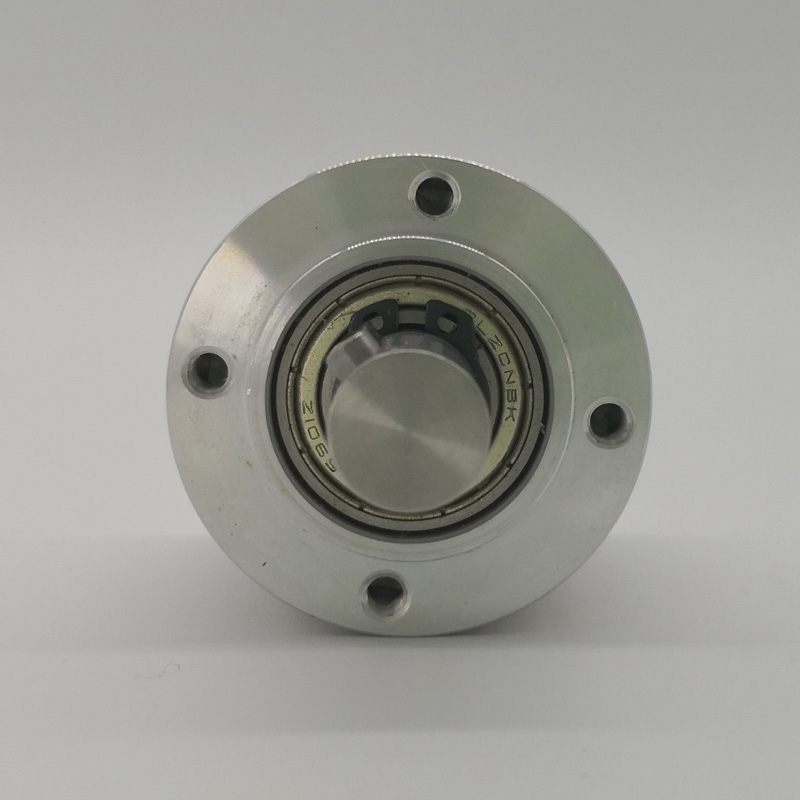

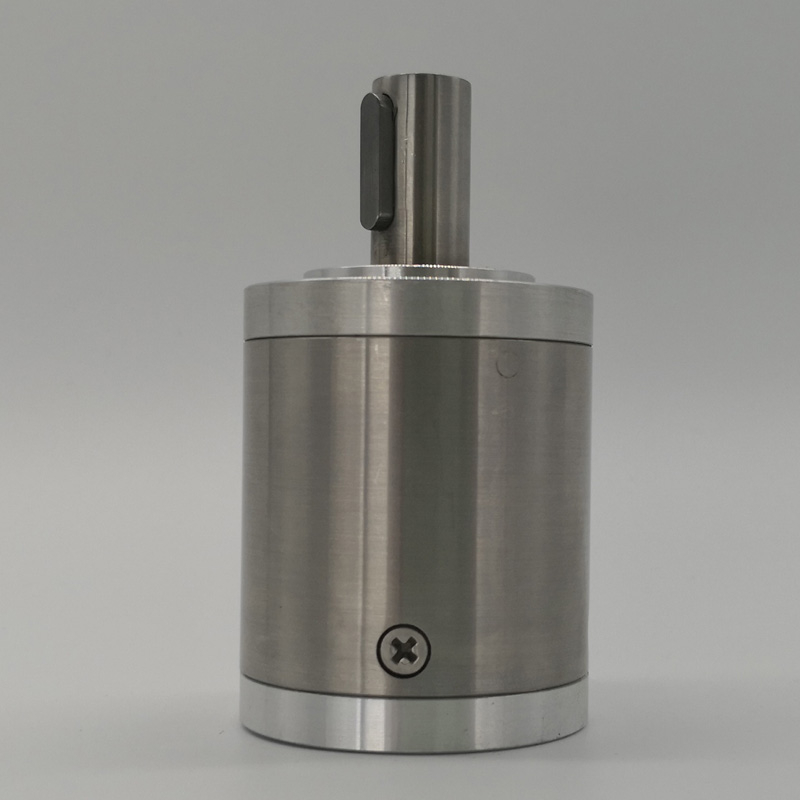

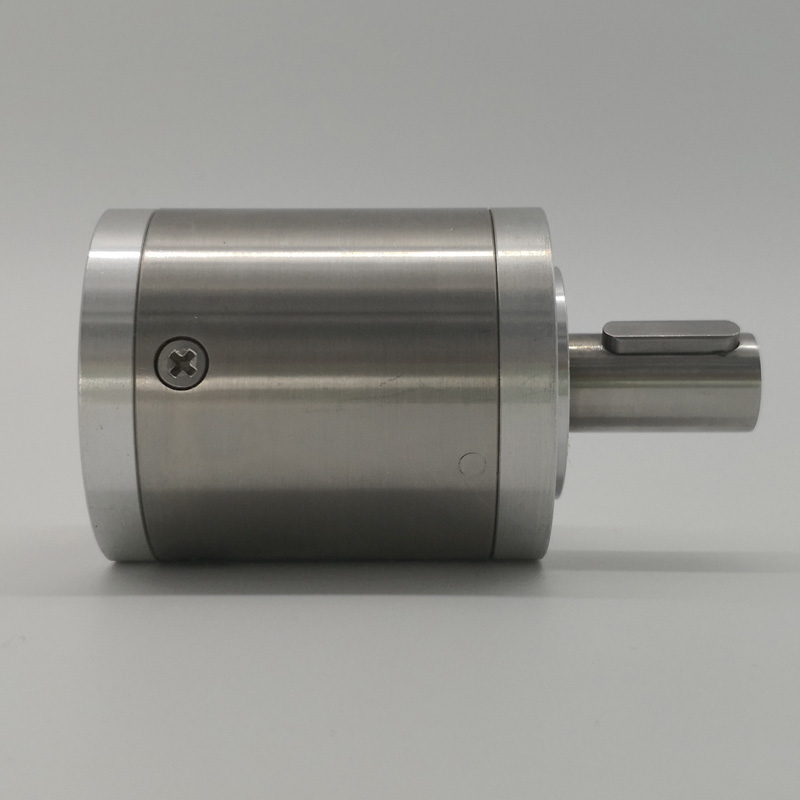

GJM45

Share to:

Chengdu Shan High Automation Equipment Co., Ltd. is a professional manufacturer of miniature planetary gearbox, the company creatively designed products with the concept of "flexible chain", produced Φ10mm, Φ12mm, Φ13mm, Φ14mm, Φ16mm, Φ22mm, Φ226mm, Φ28mm, Φ 32mm,Φ36mm,Φ42mm,Φ45mm products have achieved good Iresults in the transmission efficiency and transmission accuracy. After years of development, the company has formed three series of transmission, precision, force control products.

The company strives to produce high-quality products, introduced advanced processing center, tooth roller machine and other equipment, to ensure the precision processing of key components. Among them, transmission products can be used for the rated speed of 6oooorpm, precision products can achieve rotary precision single stage less than 6 arc points, force control products have the characteristics of high transmission efficiency and high precision.

Availability:

Quantity:



Inquire Add to Basket

Product Description

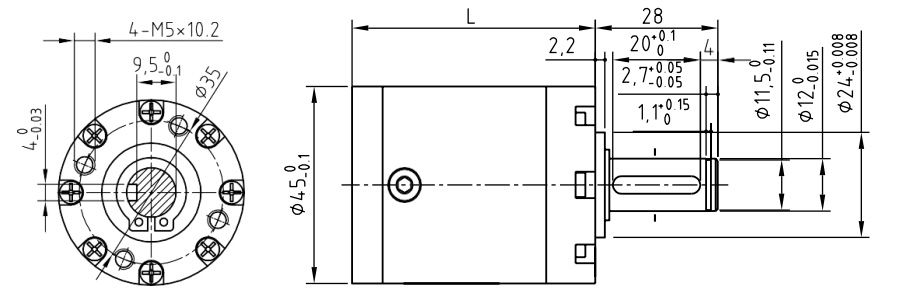

Appearance size GJM45

Sheathing material	metal
Gear material	metal
Output bearing type	Antifriction bearing
Radial load	≤25 Kgf
Axial load	≤15 Kgf
Maximum allowable input speed during continuous operation	<12000rpm
Operating temperature range	-60~100℃,-30~140℃

Standard deceleration ratio type

Deceleration ratio(partial)	Ratedto allow load	Instantly allowload	efficiency	L (mm)	Average backgap (no load) arcmin≤
4.3, 5.1, 6.3, 7.6	65Kgf-cm	195Kgf-cm	90%	44.8	10
14.7, 16.3, 17.3, 18.6, 19.2, 21.9, 23.9, 25.8, 27.2, 28.9, 32, 32.9, 38.7, 39.7, 48, 58.1	86Kgf-cm	258Kgf-cm	81%	55.6	18
65.6, 74.6, 81.4, 90.5, 92.6, 98.5, 109, 112.1, 117.2, 124.6, 132, 138, 141.8, 146.7, 150.4, 162.4, 166.9, 171.2, 182, 196.5, 201.5, 207.1, 220,3, 243.9, 250.7，295.2, 302.6, 366.2, 443.2	108Kgf-cm	324Kgf-cm	72%	66.4	26
277.4, 315.8, 335.8, 342.8, 351, 373.3, 382.2, 399.4, 413.2, 424.8, 450, 459.3, 472.2, 483.4, 500.1, 512.7, 537.4, 555.9, 569.1, 583.5, 611.5, 620.6, 632.6, 648, 670, 686.9, 706.2, 719.9, 744.7, 751.1, 763.6, 785, 824.4, 831.4, 847.6, 854.7, 869, 893.4, 924.2, 950.1, 997.8, 1006, 1023, 1052, 1078, 1081, 1119, 1147, 1238, 1269, 1272, 1305, 1388, 1499, 1536, 1580, 1680, 1860, 1907, 2251, 2307, 2793, 3380	130Kgf-cm	390Kgf-cm	65%	77.2	33
